Large Cast Acrylic Panels are essential for modern aquariums, oceanariums, luxury swimming pools, underwater tunnels, and architectural glass structures. Understanding how large cast acrylic panels are manufactured helps project owners, architects, and engineers appreciate the precision, technology, and quality control required to produce these high-performance panels.

In this detailed guide, we walk through the complete manufacturing process of large cast acrylic panels at Leyu Acrylic, a specialist with nearly 30 years of experience in the industry.

Why Manufacturing Process Matters for Large Cast Acrylic Panels

The quality of large cast acrylic panels is determined almost entirely by how they are made. Unlike extruded acrylic sheets, cast acrylic offers superior optical clarity, better molecular structure, higher strength, and greater long-term stability. Leyu Acrylic specializes in producing premium large cast acrylic panels with thicknesses from 30mm to 1000mm and maximum seamless sizes up to 10m × 3m.

A rigorous manufacturing process ensures minimal internal stress, excellent light transmittance (over 92%), and outstanding resistance to yellowing and deformation — critical for long-term underwater and architectural applications.

Step 1: Premium Raw Material Selection

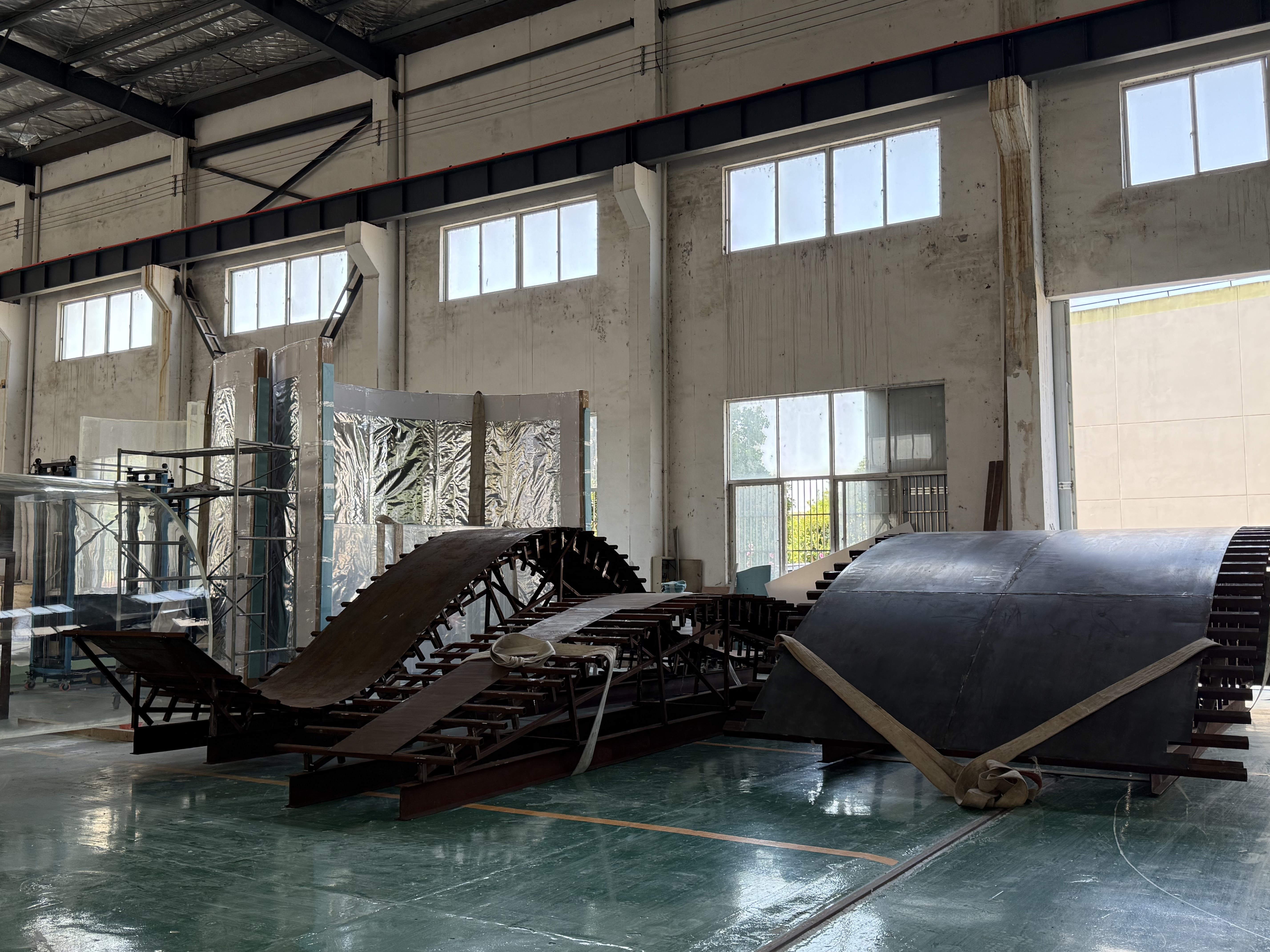

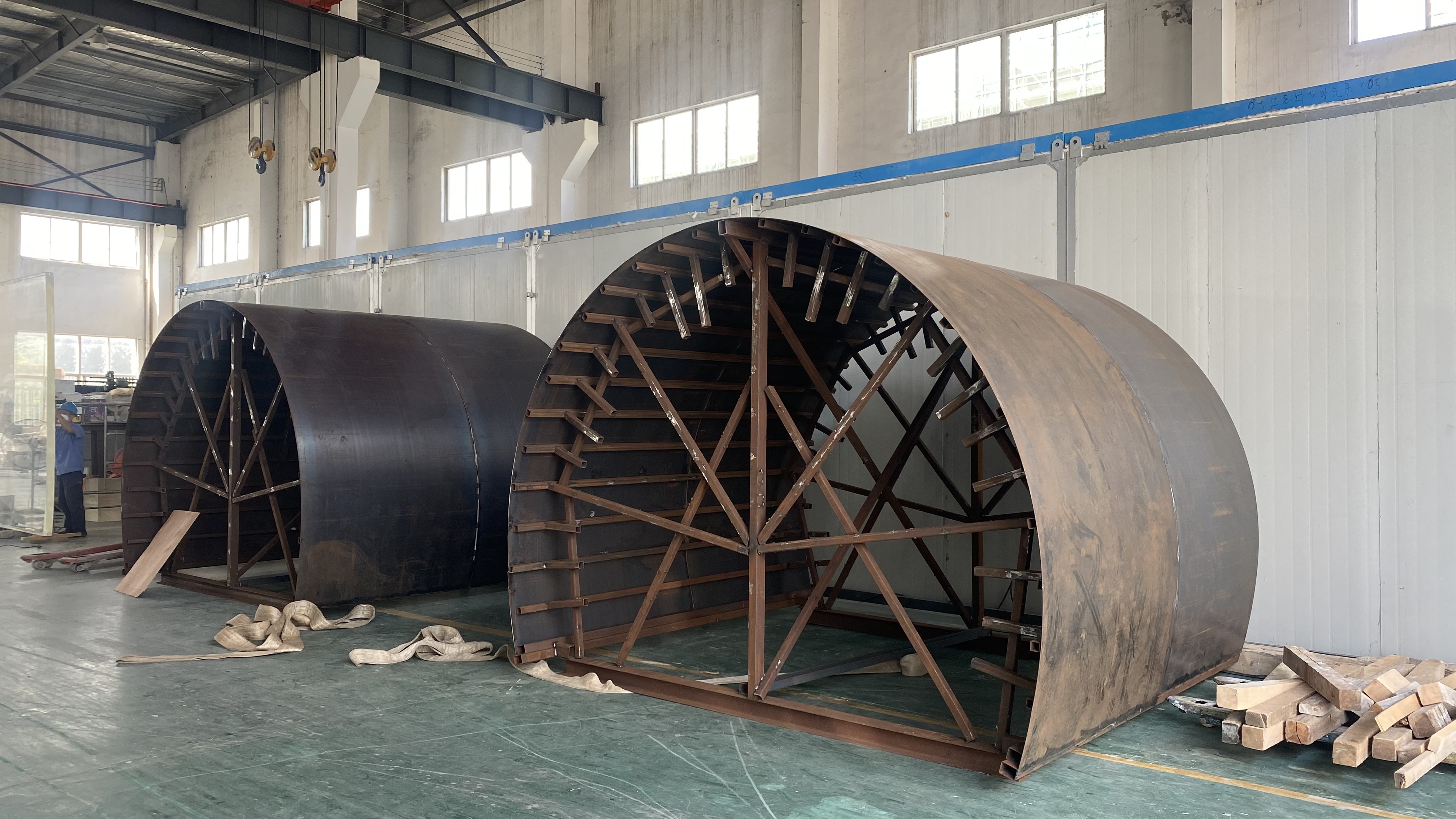

Step 2: Precision Mold Preparation

Manufacturing large cast acrylic panels requires custom molds made from high-precision tempered glass or stainless steel. The molds are thoroughly cleaned, leveled, and treated with special release agents to ensure perfect surface quality.

For very large panels, mold design and sealing technology are critical to prevent leakage during the long polymerization process.

Step 3: Controlled Casting Process

The core of manufacturing large cast acrylic panels is the casting stage:

• Purified MMA monomer is mixed with initiators and UV stabilizers under vacuum conditions to remove air bubbles.

• The mixture is slowly and evenly poured into the prepared mold.

• Polymerization occurs under precisely controlled temperature and time conditions, often taking several days to weeks depending on thickness.

This slow, controlled casting creates a dense, uniform molecular structure that gives cast acrylic its superior optical and mechanical properties compared to extruded acrylic.

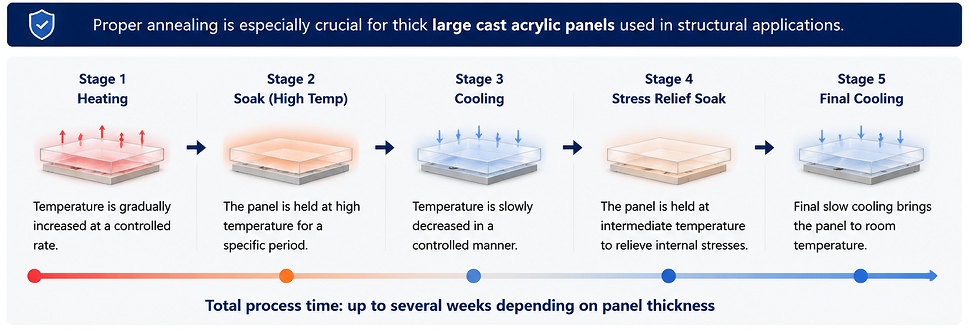

Step 4: Multi-Stage Annealing

Annealing is one of the most important steps in producing reliable large cast acrylic panels. After initial polymerization, the panels undergo a carefully programmed multi-stage annealing process lasting up to several weeks.

During annealing:

• Temperature is gradually increased and then slowly decreased

• Internal stresses from polymerization are relieved

• The panel achieves dimensional stability and reduced risk of crazing or warping

Proper annealing is especially crucial for thick large cast acrylic panels used in structural applications.

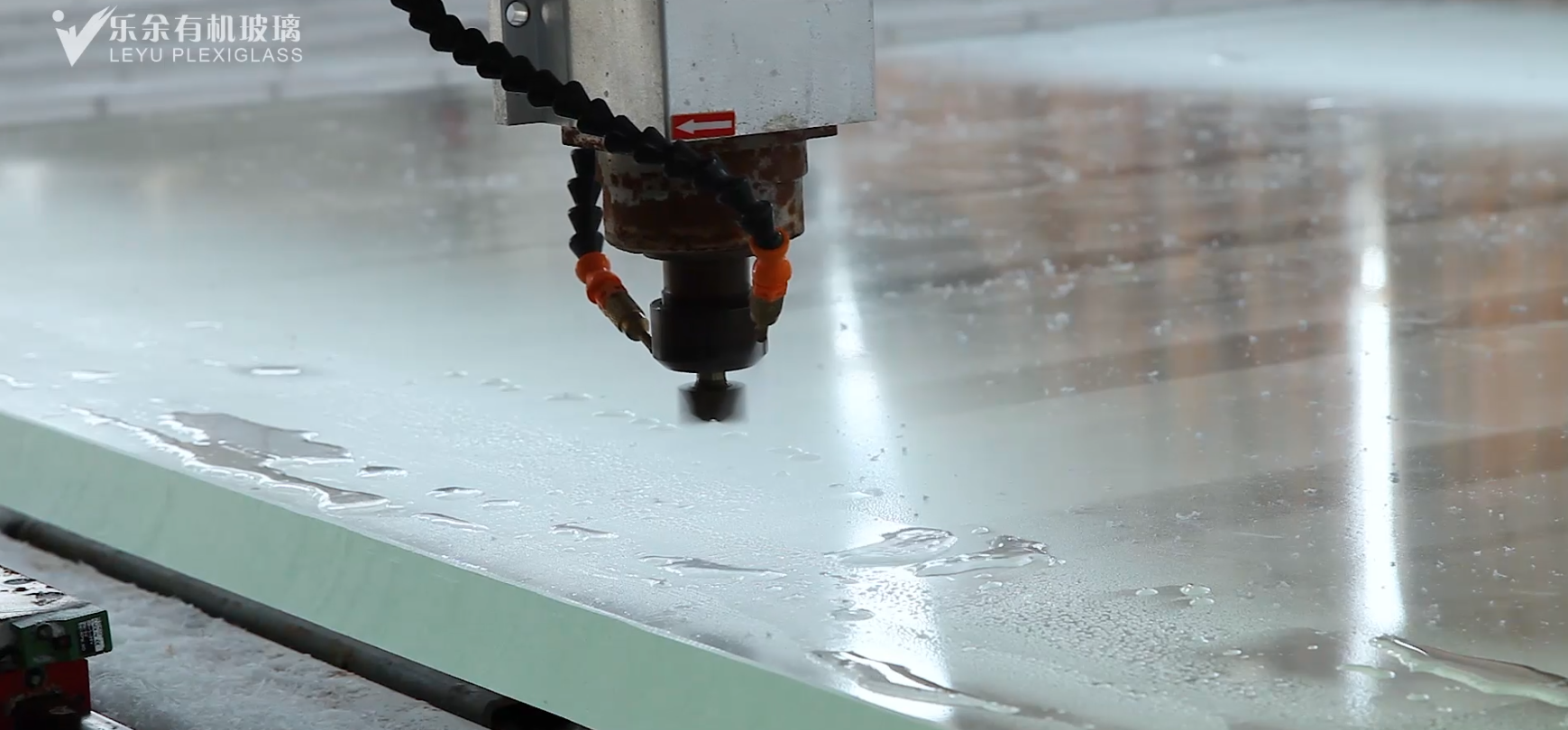

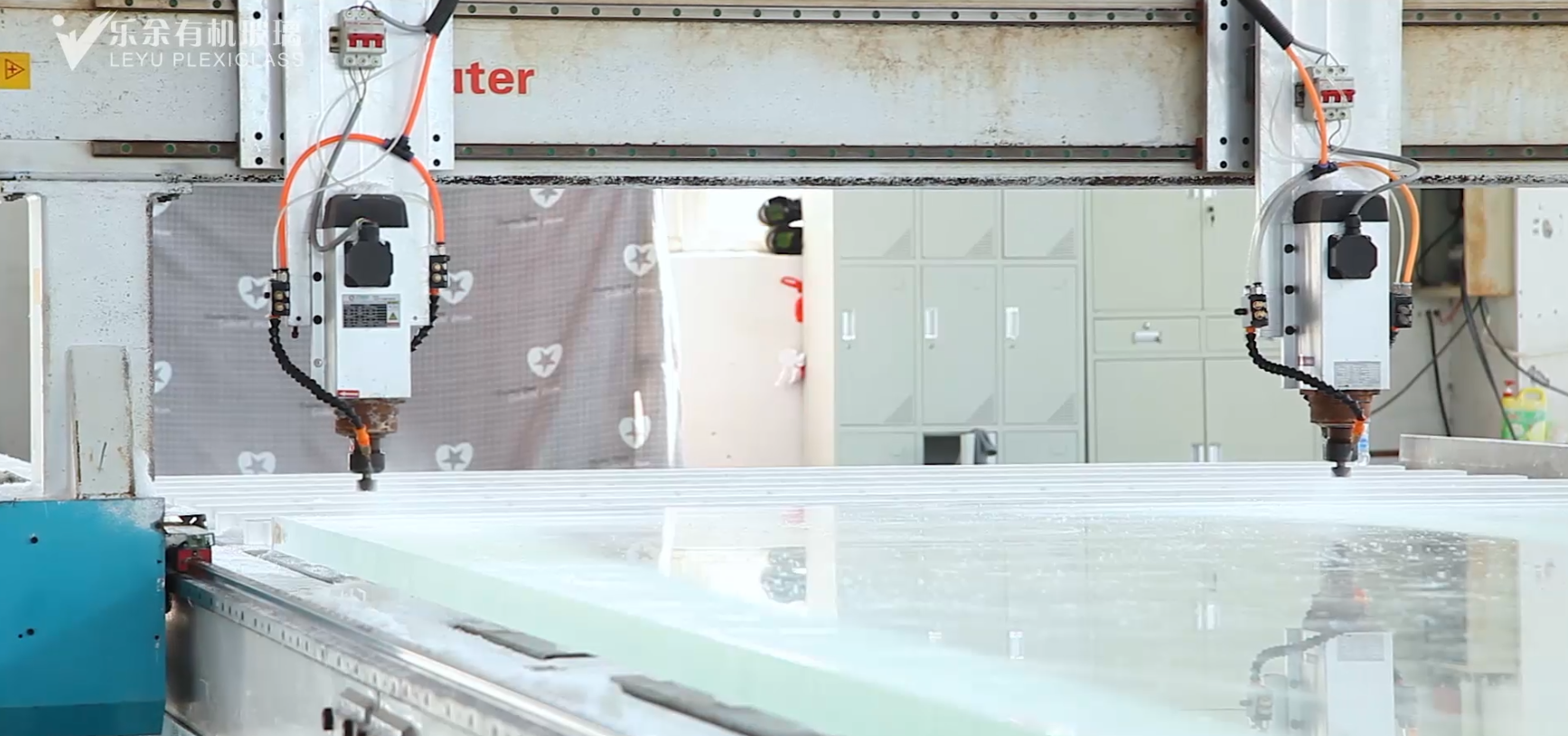

Step 5: Precision CNC Machining

Annealed large cast acrylic panels are processed on advanced CNC machining centers for:

• Accurate dimension cutting

• Edge beveling and high-gloss polishing

• Drilling mounting holes

• Surface preparation for bonding or installation

Leyu Acrylic utilizes five-axis CNC equipment capable of handling massive panels while maintaining tight tolerances.

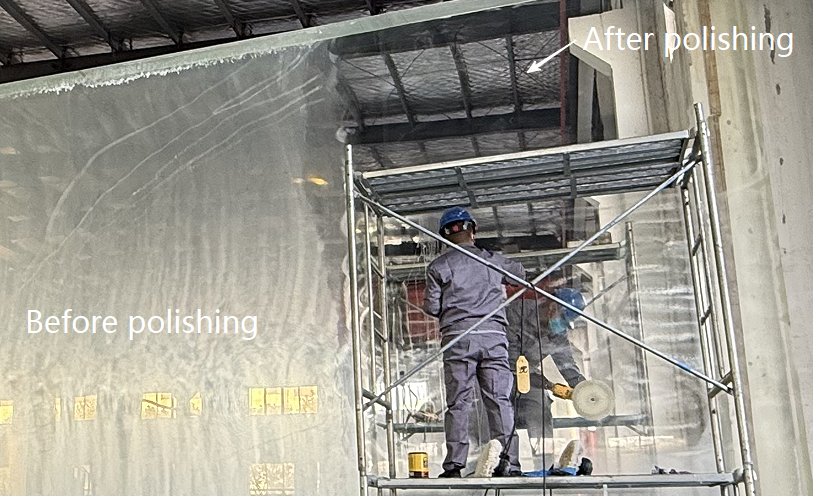

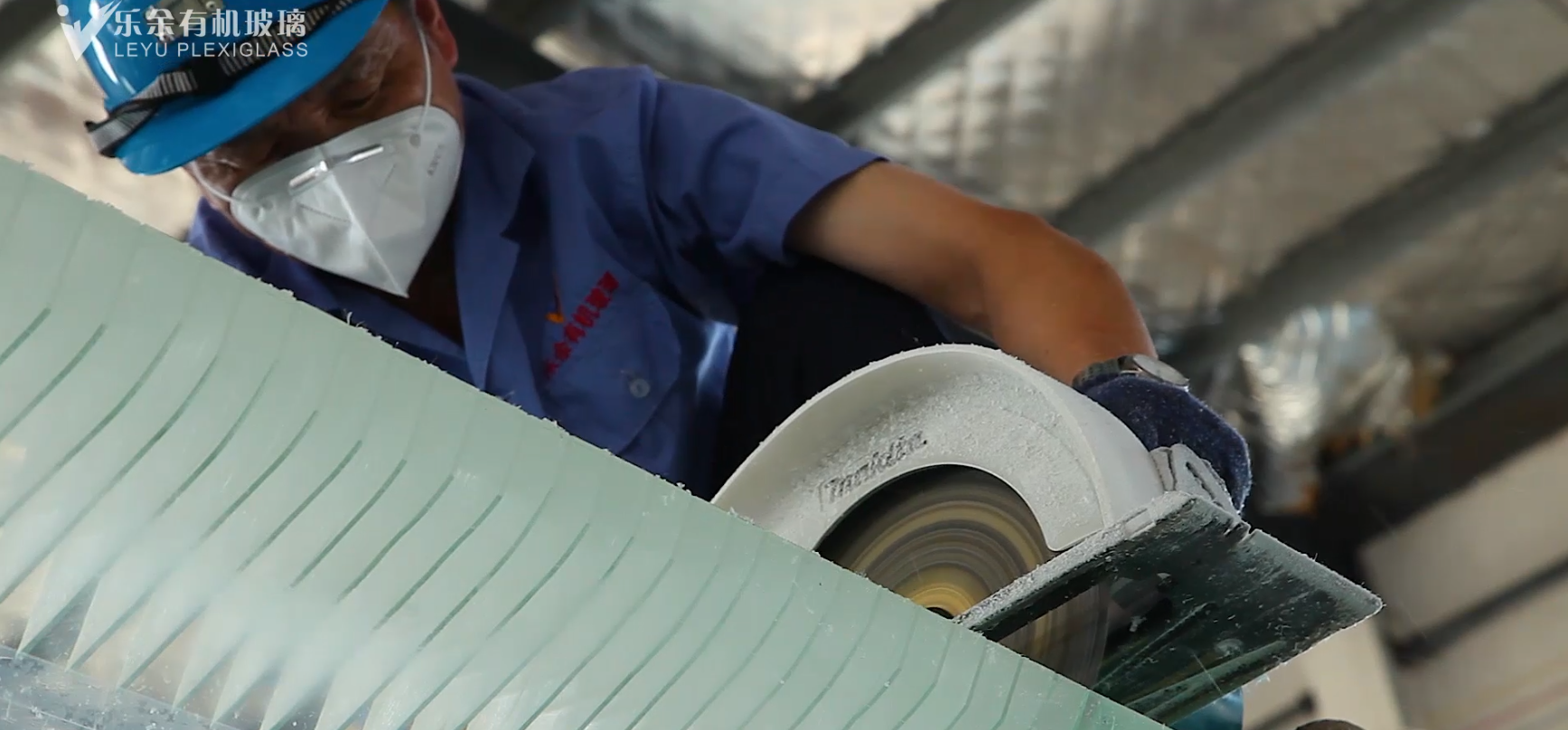

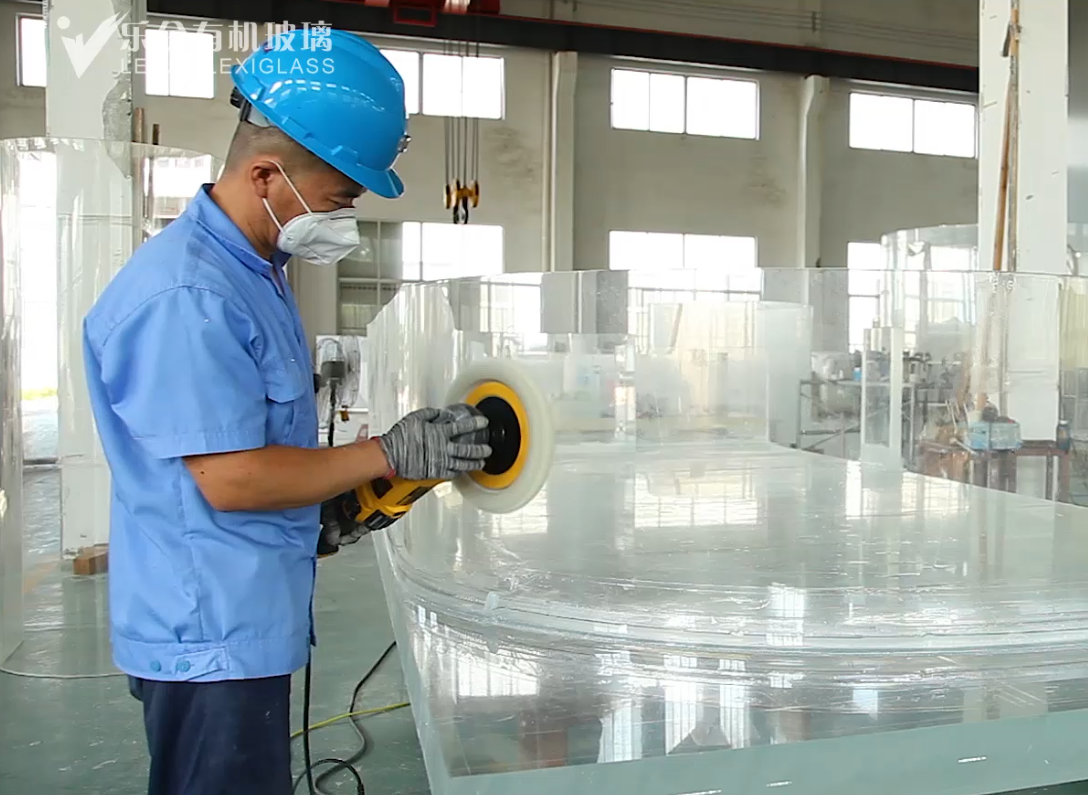

Step 6: Surface Finishing and Optical Polishing

Final surface quality is achieved through multiple polishing stages, including diamond polishing and, when necessary, flame polishing. Each panel is inspected under specialized lighting to ensure mirror-like surfaces with minimal haze.

Step 7: Rigorous Quality Control and Testing

Large cast acrylic panels are subject to regular and systematic testing, including:

• Light transmittance and haze measurement

• Thickness uniformity inspection

• Internal stress testing

• Mechanical property verification (tensile strength, impact resistance, flexural modulus)

Test reports confirm that Leyu Acrylic panels consistently achieve excellent results, such as 92.9%–93.0% light transmittance.

Click the buttonto download the acrylic test report：Acrylic inspection report -Leyu.pdf

Real Manufacturing Achievements

Leyu Acrylic has successfully manufactured large cast acrylic panels for many challenging projects, including:

• Massive curved panels for large performance pools

• Ultra-thick panels for deep oceanarium exhibits

• Large seamless panels for high-rise infinity swimming pools

• Complex cylindrical tanks with diameters up to 8–10 meters

These achievements demonstrate Leyu Acrylic’s capability in producing reliable large cast acrylic panels at scale.

Advantages of Leyu Acrylic’s Manufacturing Process

Leyu Acrylic stands out in the production of large cast acrylic panels due to:

• Strict raw material control using premium Lucite

• Advanced multi-stage annealing technology

• Precision CNC machining for large formats

• Comprehensive quality documentation and testing

• Full technical support from design to installation

With an annual production capacity of 10,000 tons and nearly 30 years of focused experience, Leyu Acrylic delivers consistent, high-quality large cast acrylic panels for the world’s most demanding projects.

Conclusion

Understanding how large cast acrylic panels are manufactured reveals why quality varies greatly between suppliers. From premium raw materials and slow casting to meticulous annealing and rigorous testing, every step contributes to the final performance.

Leyu Acrylic combines advanced manufacturing technology, strict quality control, and rich project experience to produce superior large cast acrylic panels for aquariums, swimming pools, and architectural applications.

If you are planning a project that requires high-quality large cast acrylic panels, contact Leyu Acrylic today. Our expert team will provide professional consultation, detailed manufacturing solutions, and full technical support from concept to successful completion.

FAQ

1. Q: What is the difference between cast acrylic and extruded acrylic?

A: Cast acrylic is made by pouring liquid resin into molds and allowing it to cure slowly, resulting in superior optical clarity, better strength, and lower internal stress. Extruded acrylic is produced by pushing molten material through a die, making it cheaper but with lower clarity and strength. For aquariums and large panels, cast acrylic is the preferred choice.

2. Q: How long does it take to manufacture large cast acrylic panels?

A: The entire process usually takes 4 to 10 weeks, depending on thickness and size. Thicker panels require longer polymerization and annealing times. Leyu Acrylic carefully controls each stage to ensure the highest quality.

3. Q: Why is the annealing process so important?

A: Annealing slowly relieves internal stresses created during casting. Without proper annealing, panels may develop cracks, warping, or premature failure over time. This step is critical for the long-term safety and optical performance of large cast acrylic panels.

4. Q: What is the maximum size of seamless cast acrylic panels Leyu Acrylic can produce?

A: Leyu Acrylic can manufacture seamless panels up to 10 meters × 3 meters. For even larger surfaces, precision splicing techniques are used while maintaining excellent optical quality.

5. Q: What raw materials does Leyu Acrylic use for large cast acrylic panels?

A: We use premium Lucite (Mitsubishi) MMA monomer, one of the highest-grade raw materials in the world. This ensures outstanding clarity, UV resistance, and durability in the final panels.

6. Q: How do you ensure the optical clarity of large cast acrylic panels?

A: Clarity is achieved through strict raw material control, bubble-free casting, multi-stage annealing, and multiple polishing processes. Every panel is inspected under special lighting to meet high optical standards (light transmittance over 92%).

7. Q: How thick can Leyu Acrylic make large cast acrylic panels?

A: Leyu Acrylic can produce panels from 30mm up to 800mm thick in a single cast. For special projects requiring even greater thickness, we use advanced lamination technology.

8. Q: What quality tests are performed on large cast acrylic panels?

A: Panels undergo comprehensive testing including light transmittance, haze measurement, thickness uniformity, internal stress testing, tensile strength, impact resistance, and accelerated aging tests. Independent reports verify consistent high performance.

9. Q: How long can properly manufactured large cast acrylic panels last?

A: With correct manufacturing, proper installation, and regular maintenance, high-quality large cast acrylic panels can maintain excellent clarity and structural integrity for 20 to 30 years, even in demanding aquarium and swimming pool environments.

10. Q: Can Leyu Acrylic produce custom-shaped large cast acrylic panels?

A: Yes. We specialize in custom designs including curved panels, cylinders, tunnels, and complex geometries. Our engineering team works closely with clients from initial design through final production to meet specific project requirements.
