Introduction: Bringing the Ocean Home

Imagine walking into your living room, office, or hotel lobby and being greeted not by a static wall, but by a vibrant, living masterpiece. A massive, crystal-clear window reveals a hidden world where colorful tropical fish glide through coral reefs, and the gentle movement of water creates a rhythmic dance of light and shadow on your floor. This is the magic of a custom acrylic viewing window aquarium.

For many, the idea of owning a large-scale aquarium feels like a distant dream. However, with modern high-grade acrylic technology—specifically swim-pool-grade cast acrylic—this dream is now attainable and fully customizable. This guide takes you from initial inspiration to the final moment when you sit back and watch your private ocean come to life. We focus on what truly matters: breathtaking beauty, rock-solid safety, and decades of enjoyment.

1. Why Acrylic is the Superior Choice for Luxury Aquariums

When people think of fish tanks, glass often comes to mind first. But for high-end aquatic displays, glass quickly reaches its limits. A custom acrylic viewing window aquarium outperforms glass in clarity, strength, and design flexibility.

1.1 Unmatched Optical Clarity

Thick glass develops a greenish tint due to iron content, distorting the true colors of fish and corals. In contrast, premium cast acrylic offers visible light transmission of ≥92% and haze ≤0.5%. Even a 100 mm thick panel feels almost invisible, delivering crystal-clear, distortion-free views as if there is nothing between you and the underwater world.

1.2 Exceptional Strength and Safety

A large aquarium holds thousands of liters of water, exerting immense hydrostatic pressure. Tempered glass is brittle and can shatter into dangerous shards. Acrylic is 10–17 times stronger in impact resistance. If damaged, it typically cracks or dents rather than exploding, making it far safer for homes with children, pets, or high-traffic areas.

1.3 Unlimited Design Freedom with Curves

Glass is rigid and difficult to curve without distortion. Acrylic is thermoplastic and can be thermoformed into almost any shape—circular tanks wrapping around pillars, panoramic curved windows, seamless U-shapes, or dramatic infinity-edge designs. These once-impossible forms become elegant realities in a luxury custom acrylic viewing window aquarium.

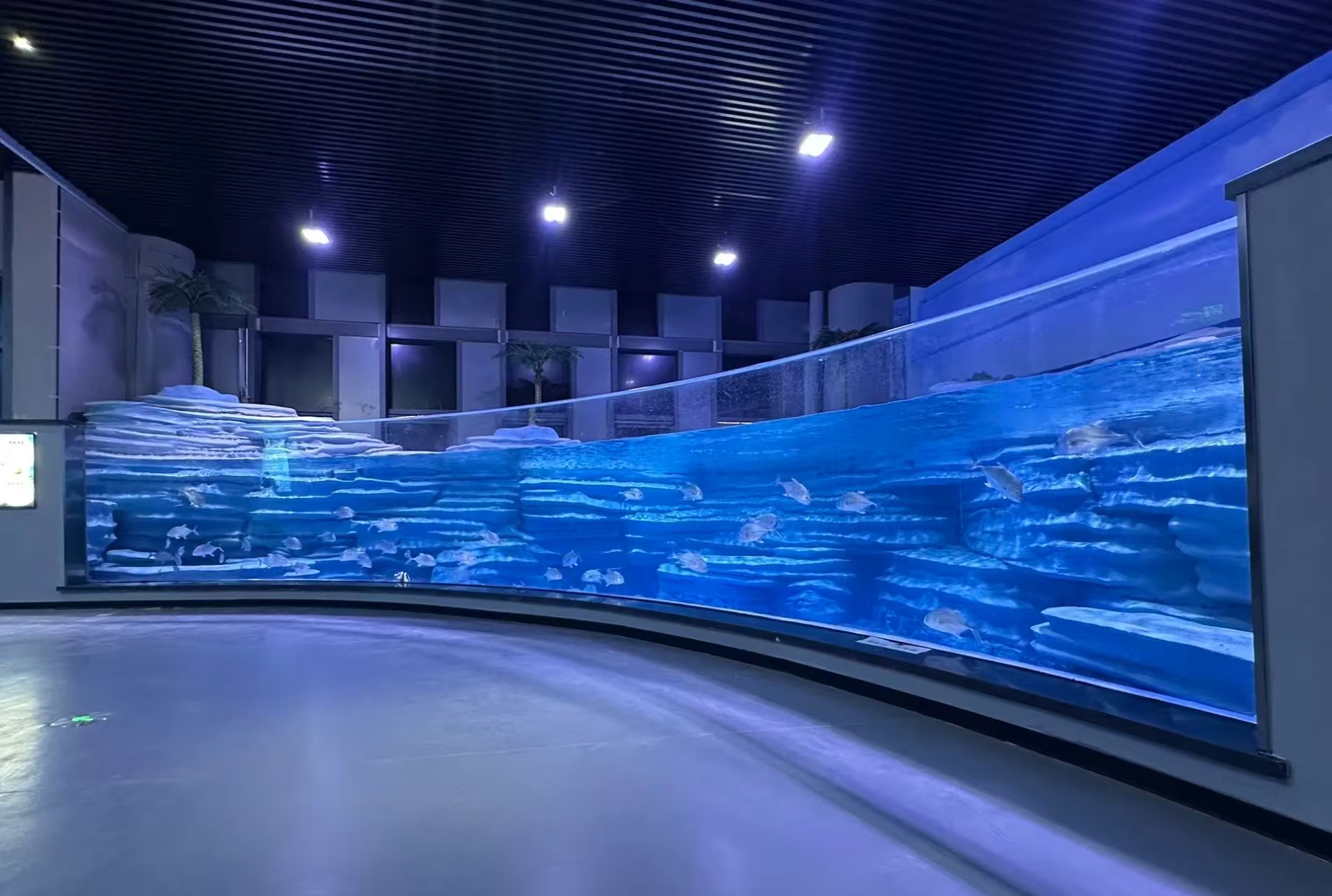

Curved Acrylic

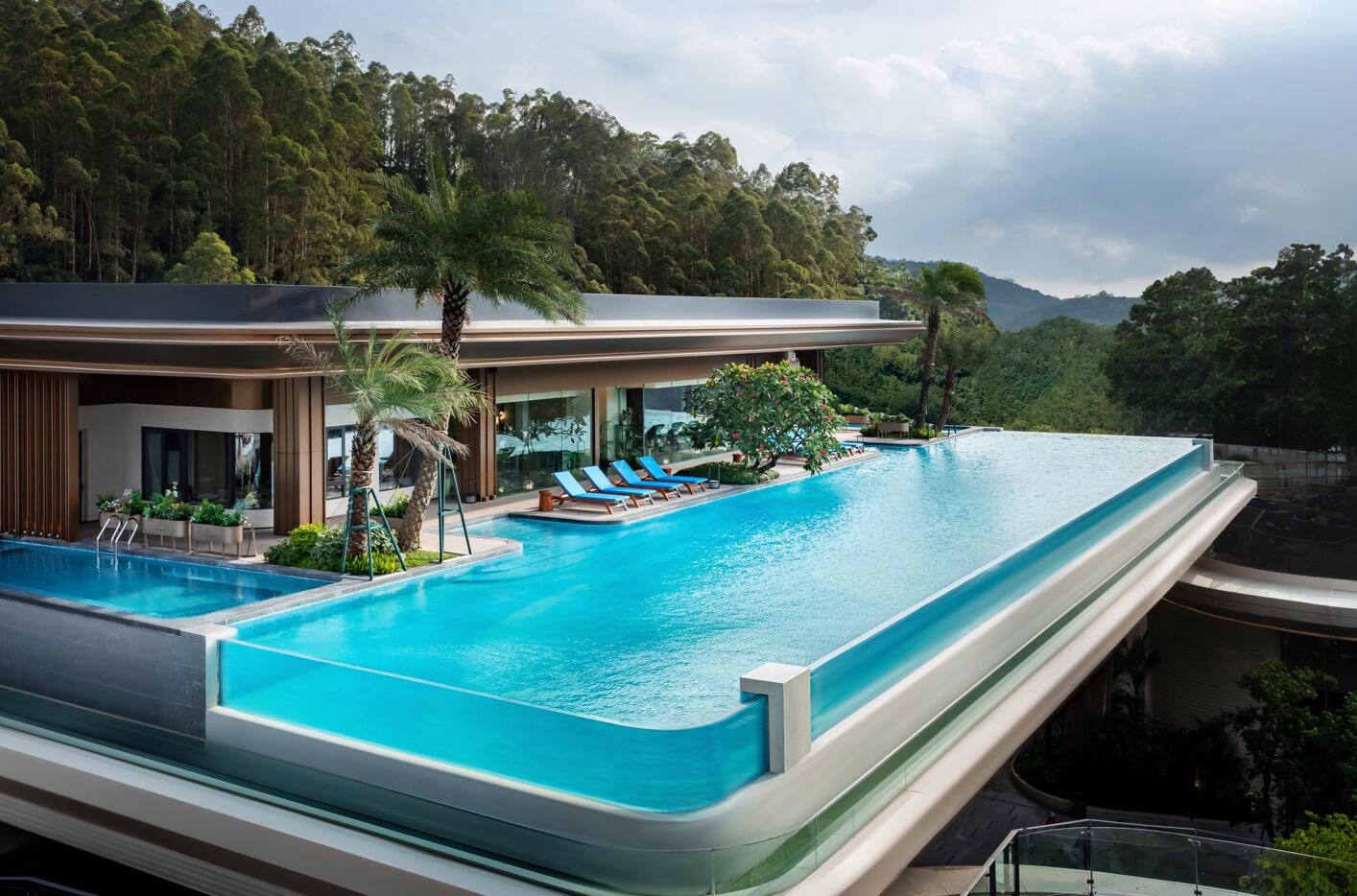

L-shaped Acrylic

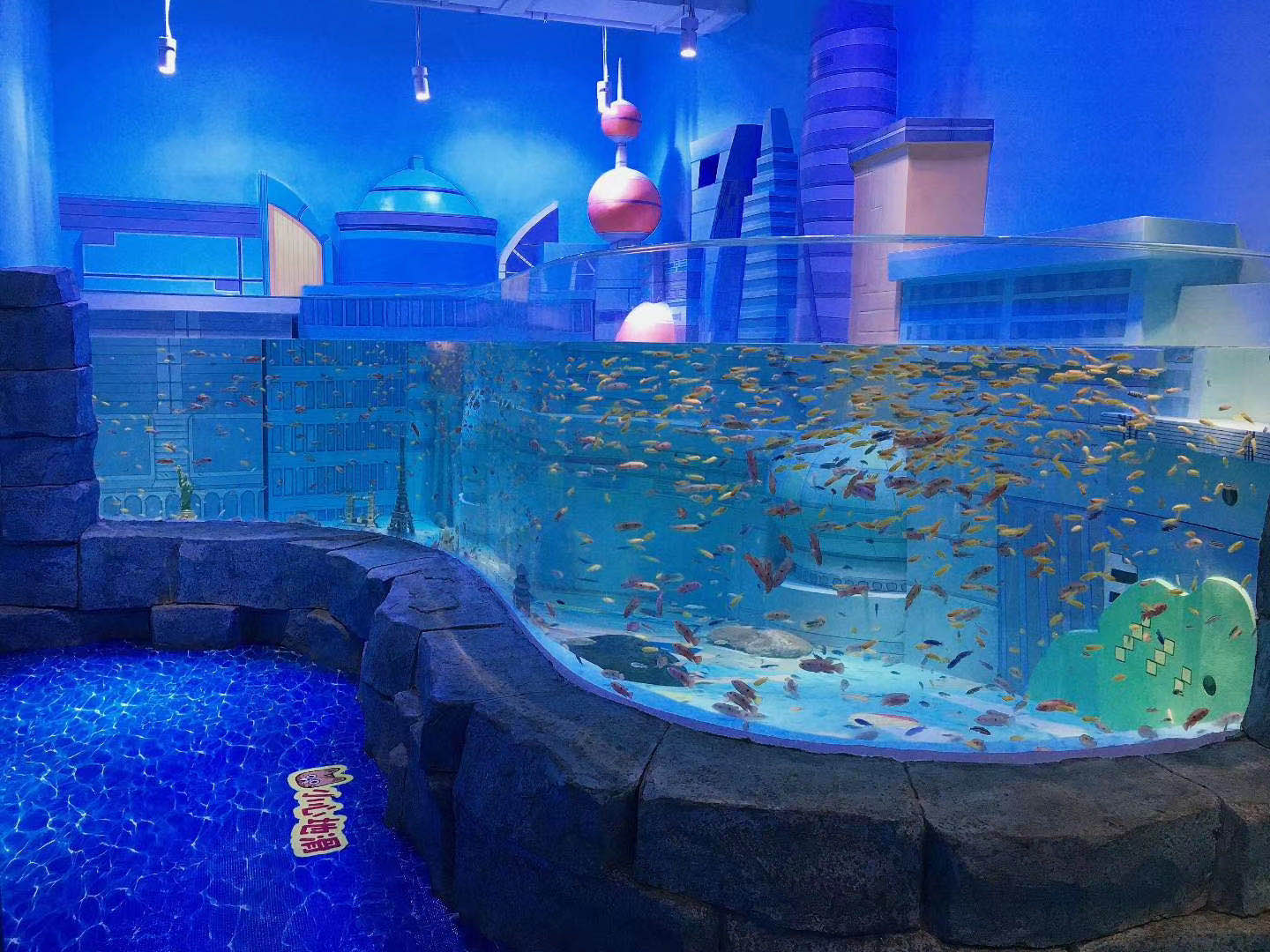

S-shaped Acrylic

2. Finding Your Design Inspiration

A custom acrylic viewing window aquarium is more than a tank—it becomes part of your home’s soul and architecture.

• Room Divider Living Wall: Create a stunning transparent partition between dining and lounge areas for openness and visual drama.

• Floor-to-Ceiling Masterpiece: Experience the “wow” factor of standing inside an underwater world, with blue hues reflecting beautifully across ceilings and walls.

• Integrated Furniture: Subtly incorporate viewing windows into cabinetry, kitchen islands, or even bed headboards, positioned at eye level for maximum relaxation.




3. The Professional Design and Engineering Process

Building a luxury custom acrylic viewing window aquarium follows a proven journey that combines creativity with rigorous engineering.

3.1 Concept and Site Survey

The process begins with a detailed site assessment. Engineers evaluate floor strength, structural support, access for large panels (sometimes requiring cranes), and environmental factors such as temperature swings and UV exposure.

3.2 Selecting Pool-Grade Cast Acrylic

Not all acrylic is suitable for long-term water pressure. For premium projects, use swim-pool-grade cast acrylic produced by in-situ bulk polymerization. It features higher molecular weight (Mw ≥1,000,000 g/mol) and narrower distribution, delivering superior creep resistance and 20–25+ years of reliable performance without sagging or clouding.

3.3 Calculating Optimal Thickness and Safety

Thickness is precisely engineered based on water depth, using elastic thin-plate theory and considering creep effects. Safety factors are typically ≥3 (or ≥4 for cantilevered/suspended designs), with maximum deflection limited to 1/250 of the short-side span. Full ANSYS or ABAQUS finite element analysis reports can be provided for complex projects.

3.4 Seamless Thermal Fusion Bonding

For extra-long viewing windows, panels are joined using advanced thermal fusion polymerization with the same-grade monomer. This creates molecular-level fusion with ≥95% of the parent material’s strength and virtually invisible joints (light transmission deviation ≤0.5%). The result is a monolithic appearance that passes 1.5× design pressure testing for 24 hours with zero leakage.

3.5 Stress-Relief Annealing

After cutting and bonding, panels undergo multi-step gradient annealing in a controlled oven. This eliminates internal stresses, verified by polarized light scanning (edge birefringence ≤80 nm/cm), dramatically reducing the risk of crazing or cracking over decades.

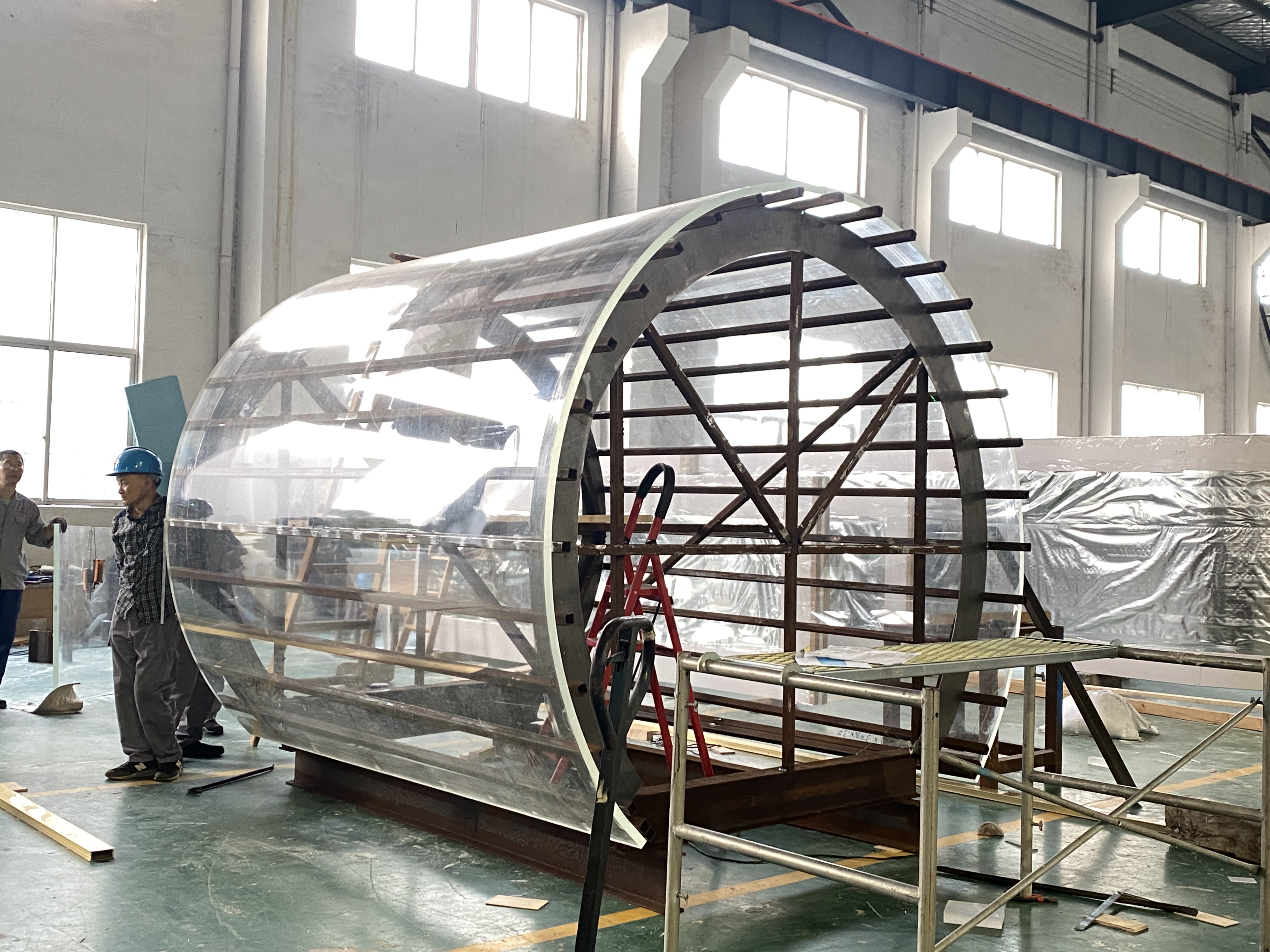

Factory Production

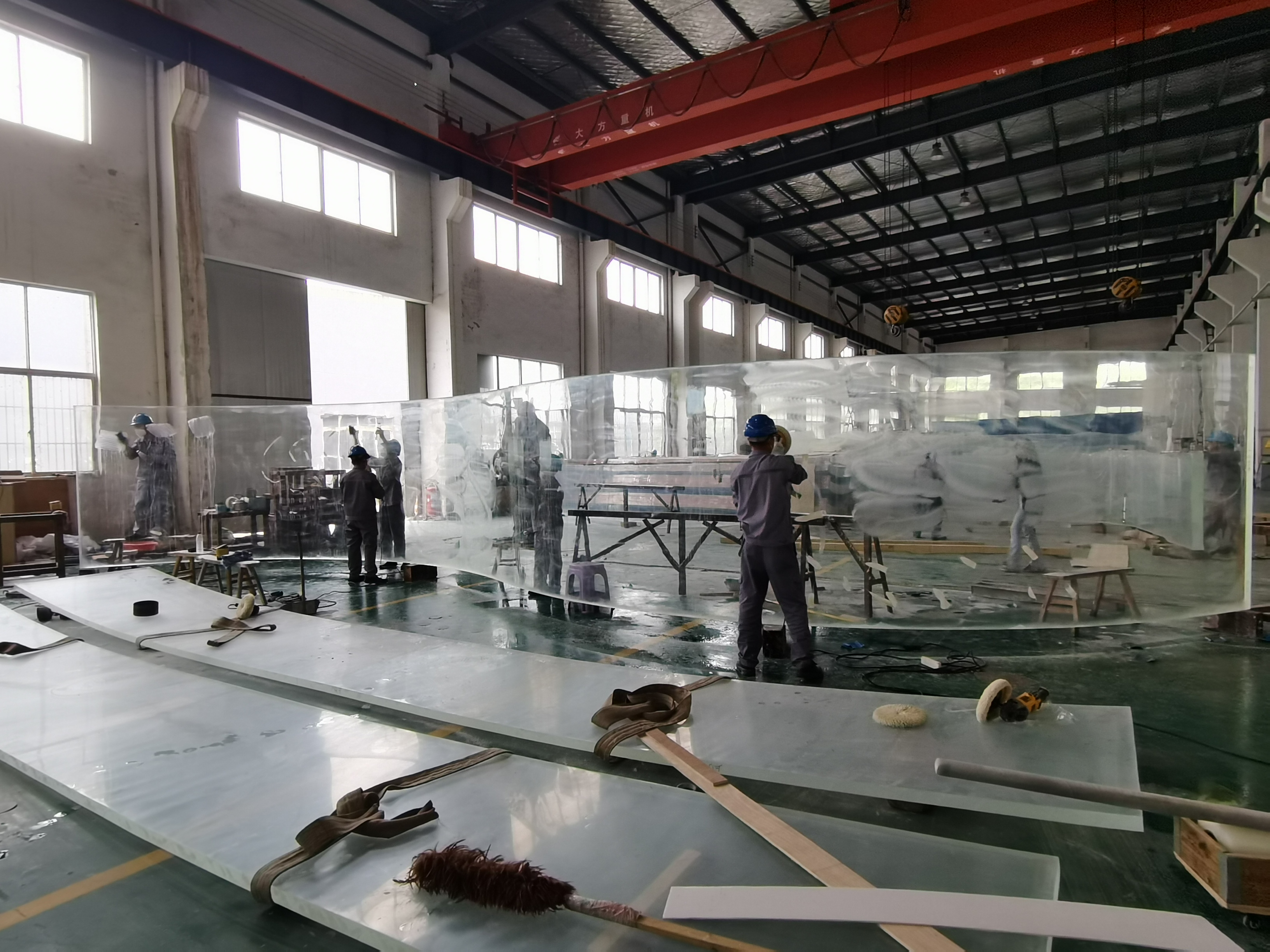

Factory Production

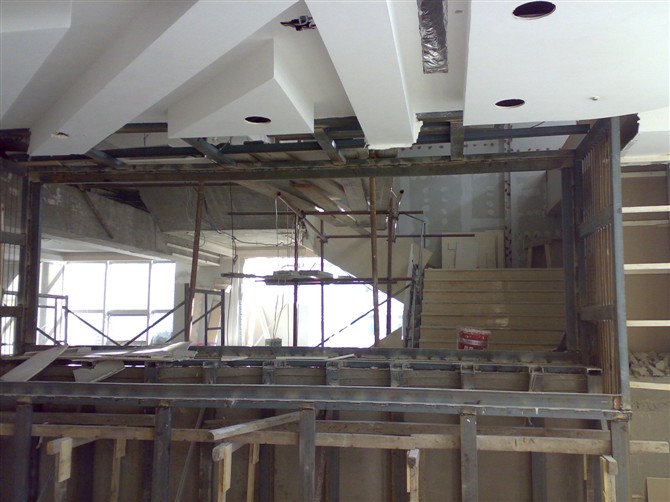

Acrylic Tank Installation

Acrylic Tank Installation

4. The Hidden Life Support System

A beautiful custom acrylic viewing window aquarium must also be a healthy ecosystem.

• Concealed Filtration: All pumps, pipes, and equipment are hidden in a separate technical room or soundproofed cabinet, keeping the visual experience pure.

• Programmable LED Lighting: Smart lights simulate natural sun cycles—from soft dawn orange to bright daylight and calming moonlight blue—supporting both aesthetics and biological rhythms.

• Precise Climate Control: Chillers and heaters maintain stable water temperature year-round, essential for tropical or marine setups.




5. Long-Term Maintenance and Care

With proper design, maintaining a luxury acrylic aquarium is simpler than many expect.

• Gentle Cleaning: Use only soft cloths and specialized acrylic cleaners. Avoid alcohol-based products like Windex that can damage the surface.

• Scratch Repair: Acrylic is renewable. Minor scratches (≤50 μm) can be polished away completely. Deeper scratches are restored through progressive sanding and polishing, often while the tank remains filled, restoring near-original clarity and gloss.

• Smart Automation: Many systems include automated water changers, self-cleaning filters, and remote monitoring via smartphone apps.




6. Real-World Applications of Luxury Acrylic Aquariums

Custom acrylic viewing window aquariums shine in diverse high-end environments:

• Corporate Wellness Offices: A massive water wall behind a desk reduces stress and creates an impressive backdrop for meetings.

• Hotel and Lobby Statements: Infinity-edge designs deliver unforgettable first impressions and memorable guest experiences.

• Private Villa Sanctuaries: A personal underwater window becomes a daily source of meditation, conversation, and family wonder.

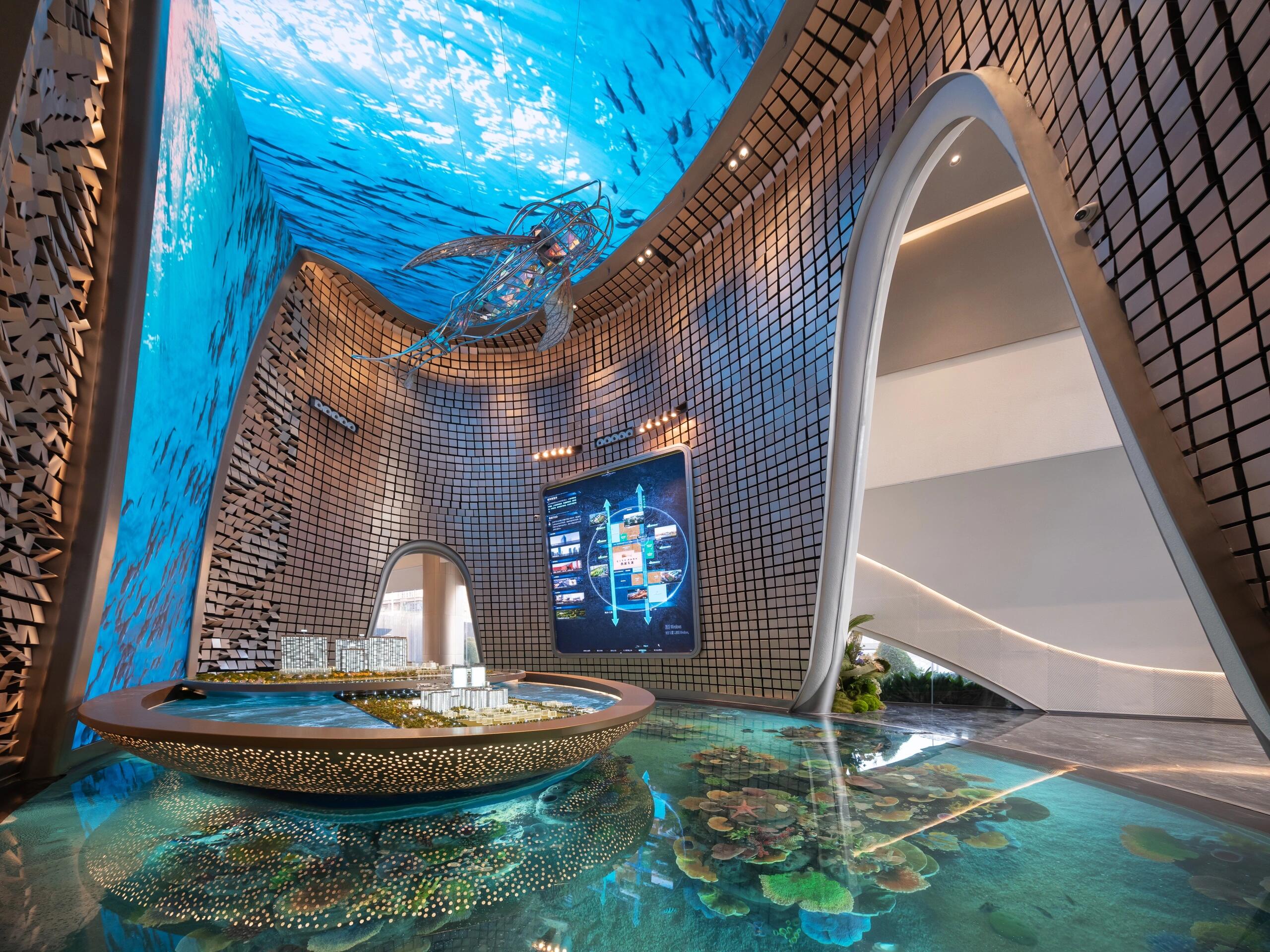

Hotel and Lobby Aquarium

Fish Tank

Cylindrical aquarium

7. Extreme Conditions and Advanced Solutions

For demanding projects, specialized optimizations ensure performance:

• Cold Climates: Use toughened low-temperature acrylic with enhanced impact strength at -40°C and wider expansion joints.

• High-UV Tropical Areas: Super-weatherable grades with higher UV stabilizer content and optional nano-hard coatings.

• Infinity-Edge or Suspended Designs: Higher safety factors (≥4), thicker monolithic panels where possible, and staged filling tests with continuous monitoring.

•


Ready to Create Your Dream Custom Acrylic Viewing Window Aquarium?At Leyu Acrylic, we combine world-class swim-pool-grade materials, advanced engineering, and full lifecycle support to turn your vision into reality. From initial concept and FEA analysis to precision fabrication, professional installation, and ongoing care, we deliver windows into the deep that will captivate for decades.

Contact us today for personalized design assistance, material samples, or a detailed proposal.

Acrylic (PMMA) panels outperform glass in multiple critical areas for high-end aquatic displays:

• Superior Clarity: Visible light transmission ≥92%, haze ≤0.5%, and initial Yellow Index (YI) ≤1.0 — delivering distortion-free, vibrant underwater views.

• Lightweight & Strong: Only half the weight of glass, yet impact strength is typically 10× higher than tempered glass. Breaks into blunt cracks rather than dangerous shards.

• Formability: Can be thermoformed into large curves, cylinders, U-shapes, or panoramic windows up to 12 meters long with minimal optical distortion.

• Long-Term Performance: Specialized pool-grade cast acrylic resists creep (permanent sagging) under constant water pressure, making it ideal for large viewing windows.

These properties make acrylic the preferred material for infinity-edge, suspended, or wall-integrated luxury aquariums.

 Frequently Asked Questions (FAQ)

Q1: What is the biggest advantage of acrylic over glass for viewing window aquariums?

A: Acrylic provides higher light transmission (≥92%), is much lighter, can be formed into large curves without distortion, and offers far superior impact resistance — making it safer and more visually stunning for luxury designs.

Q2: Will the acrylic panel sag or deform permanently under water pressure?

A: High-molecular-weight pool-grade acrylic, properly annealed, maintains excellent creep resistance. With correct thickness and supports, deflection stays well within limits for a 20+ year design life.

Q3: How long will an outdoor acrylic aquarium window last without yellowing?

A: With proper UV stabilizers (≥2.5‰ HALS + UVA), it can achieve approximately 15–20 years of outdoor service with minimal yellowing or haze, as validated by accelerated QUV testing.

Q4: How do you ensure the joints between acrylic and concrete/steel do not leak?

A: A three-tier system is used: primary flexible silicone sealant, secondary swelling waterstop, and tertiary concrete or steel barrier. All sealants are pre-tested for compatibility with acrylic.

Q5: Is acrylic safe with aquarium chemicals and salt water?

A: Yes, when water parameters stay within recommended ranges (chlorine ≤10 ppm, pH 4–11, etc.). It shows excellent chemical stability with minimal property loss after prolonged exposure.

Q6: What precautions are needed during transport and installation?

A: Use specialized multi-point lifting equipment, maintain vertical orientation, control site temperature (10–30°C), and allow full sealant curing before filling the aquarium.

Q7: Can scratches on acrylic be repaired?

A: Yes. Minor scratches polish out completely. Deeper ones can be sanded and polished or filled with compatible acrylic slurry, restoring most optical and structural performance.

Q8: What is the expected service life of a custom acrylic viewing window aquarium?

A: 25+ years indoors and 20+ years outdoors when designed, installed, and maintained according to guidelines. Life ends when optical degradation, excessive creep, or strength loss affects safety or appearance.

Q9: Can you build large curved, cantilevered, or rimless infinity aquariums safely?

A: Absolutely, but they require higher safety factors (≥4), detailed FEA with creep modeling, thicker panels where possible, flexible connections, and staged pressure testing.

Q10: How can I verify quality before purchasing?

A: Request full inspection reports, third-party verification, material certificates, and unique QR-code traceability for each panel. Factory visits or pre-shipment inspections are recommended. On-site 1.5× hydrostatic testing confirms performance.
