How Thick Should An Acrylic Swimming Pool Panel Be?
Views: 0 Author: Site Editor Publish Time: 2026-06-02 Origin: Site
When building a modern acrylic swimming pool, one of the most critical decisions is choosing the right thickness for the acrylic swimming pool panel. The question “How thick should an acrylic swimming pool panel be?” has no single answer — it depends on multiple factors such as water depth, panel size, structural design, and safety requirements.
This article explains in detail how to determine the appropriate thickness of acrylic swimming pool panels, based on Leyu Acrylic’s real engineering experience and completed projects.
Why Thickness Matters for Acrylic Swimming Pool Panels
The thickness of an acrylic swimming pool panel directly affects its structural strength, optical clarity, safety, and long-term performance. If too thin, the panel may deform or fail under water pressure. If too thick, it increases unnecessary cost and weight.

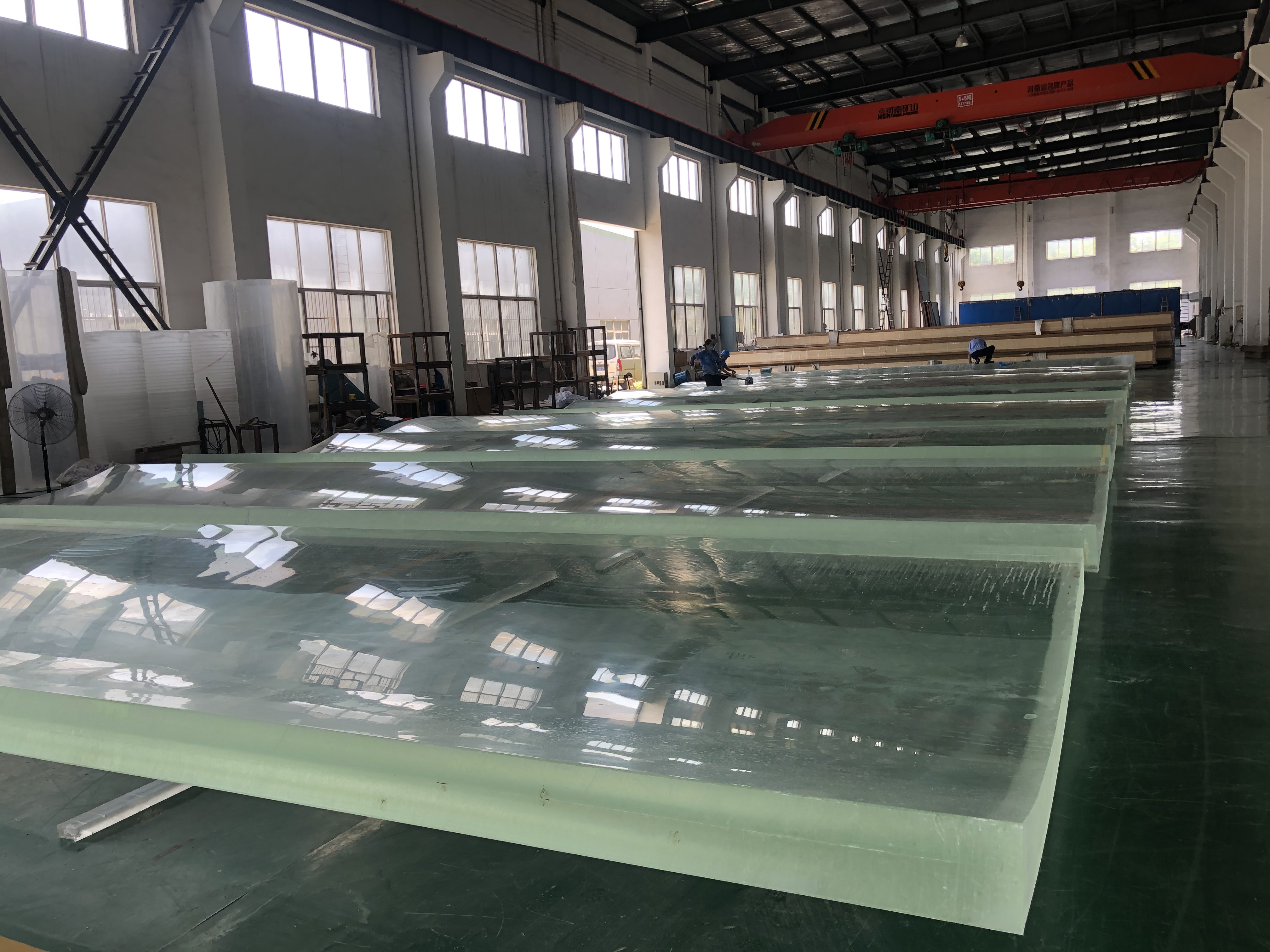

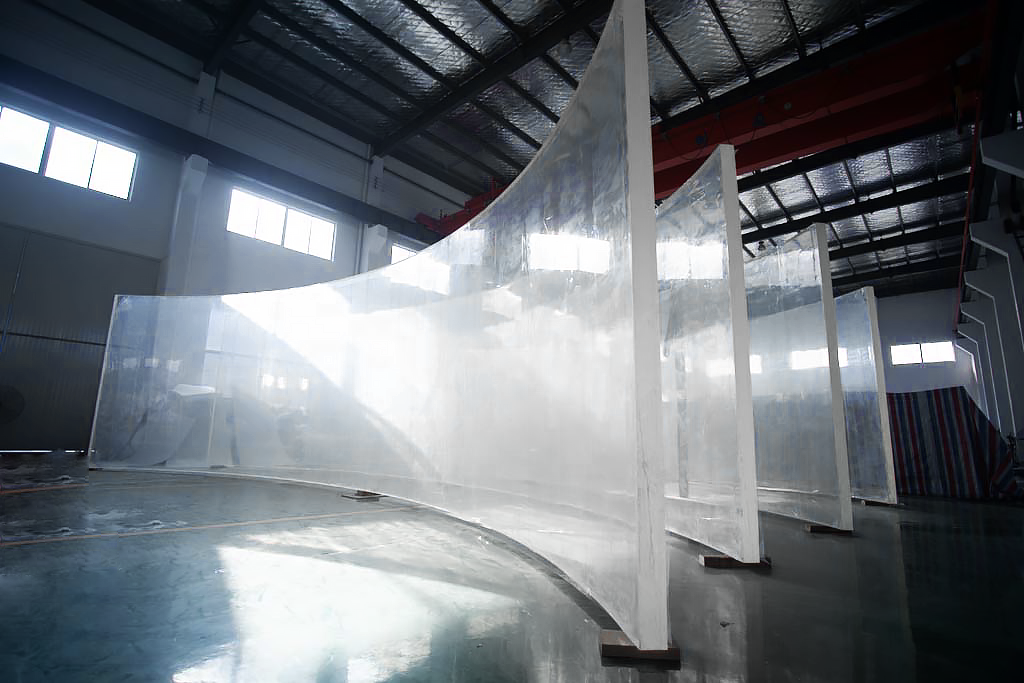

Leyu Acrylic can produce acrylic swimming pool panels with thicknesses ranging from 30mm to 1000mm, meeting the needs of various pool designs.
Custom Acrylic Panel-Leyu
Custom Acrylic Panel-Leyu
Key Factors Determining Acrylic Swimming Pool Panel Thickness
1. Water DepthThe deeper the water, the thicker the panel required.
2. Panel Span and SizeLarger spans and bigger panels require greater thickness.
3. Safety FactorProfessional designs typically use a safety factor of 3 to 4 times the expected load.
4. Edge Support and Special StructuresCantilevered, infinity edge, and curved designs usually need thicker panels.
5. Environmental FactorsHigh-rise locations, outdoor UV exposure, and pool chemicals also influence thickness selection.
Acrylic Swimming Pool Panel Thickness Recommendation Guide
（For reference only. Specific thickness must be determined according to the above factors.）
Residential backyard pools: 40mm – 80mm
Infinity edge and rooftop pools: 60mm – 150mm
Commercial and resort pools: 80mm – 200mm
Large commercial or deep display pools: 150mm – 400mm+
High-altitude cantilevered or special viewing areas: Up to 600mm – 800mm for maximum safety
Real Project Cases from Leyu Acrylic
Leyu Acrylic has supplied acrylic swimming pool panels for over 200 projects. Here are some representative examples:
Chongqing Westin Hotel Suspended Swimming Pool
This was Leyu Acrylic’s first high-altitude suspended pool project in China. Located on the 54th floor, it offers stunning views of the Jialing River and Qiansimen Bridge.
Bottom panel: 9000mm long × 3000mm wide, 200mm thick
Side panels: 24000mm long × 1450mm wide, 160mm thick

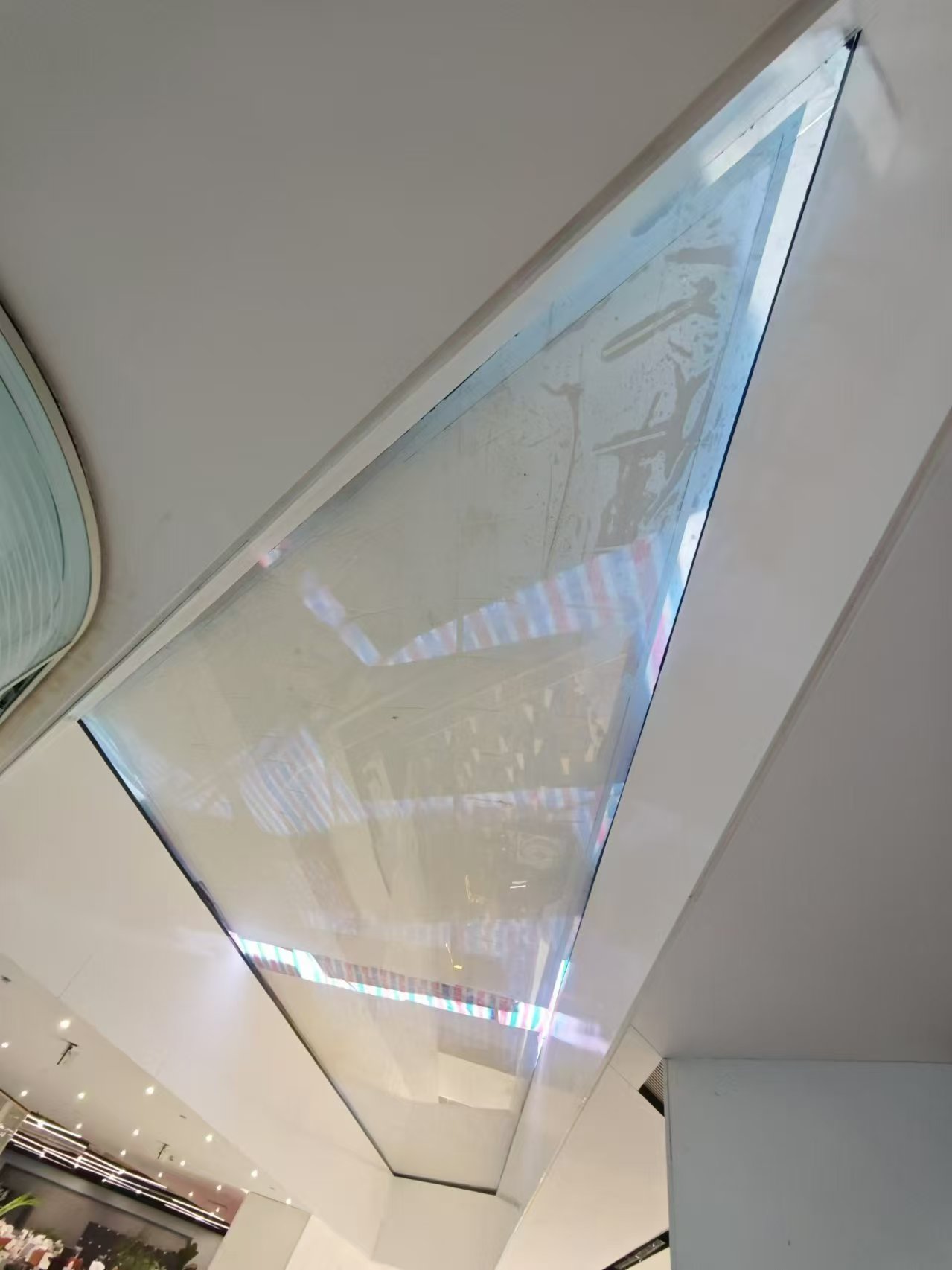

Ningbo Taipingniao Fish Pool
Located on the top floor of the Taipingniao Fashion Center lobby.From inside the building, sunlight refracts through the pool, creating a “sky realm” effect with tree reflections. It perfectly blends modern luxury with marine aesthetics, creating a high-end social space full of natural charm.
Bottom panel: 22m long×4.5m wide, 250mm thick
Hilton Garden Inn Meishu High-altitude Infinity Pool
A transparent infinity pool built on a 100-meter-high rooftop, extending beyond the building facade.
Side panels: 35 meters long
Bottom panel: 25 meters long
Thickness: 150mm

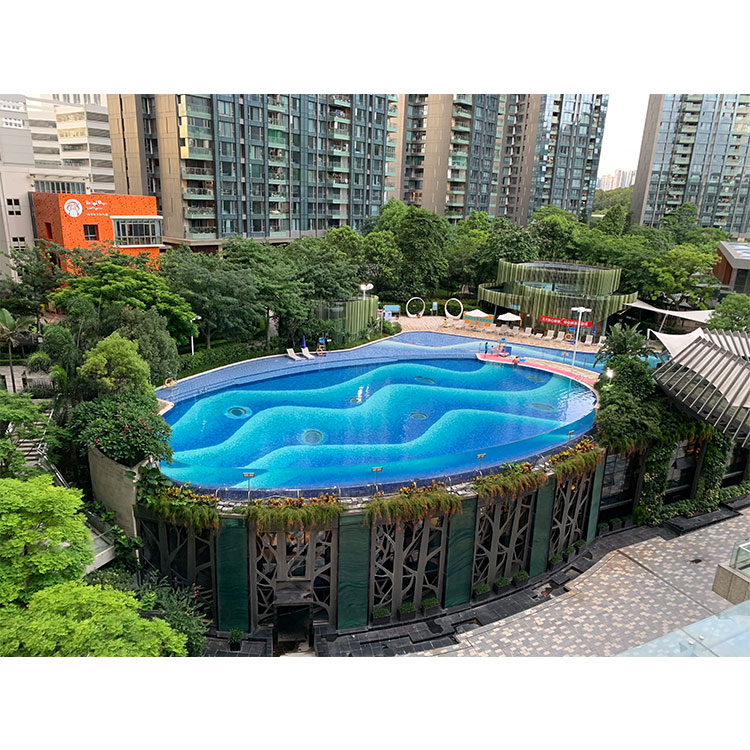

Bolin Tianrui Swimming Pool
The main pool is approximately 25 meters long and 12 meters wide, with a gradual water depth ranging from 1.2 to 1.8 meters. The pool features an infinity edge design, creating a hidden swimming oasis within the city — a tranquil “swimming secret realm” nestled in an urban oasis.
Outdoor curved pool with acrylic panels: 23500mm long × 1520mm wide, 120mmthick.
Shanghai Jumeirah Jinfengton Hotel
The Shanghai Jumeirah Jinfengton Hotel acrylic swimming pool measures approximately 28 meters in length and 6 meters in width, with a uniform water depth of 1.35 meters. The pool has a water surface area of 162.4㎡ and a volume of 230m³. It features an infinity edge design, complemented by pure white gauze curtains that harmonize beautifully with the surrounding environment, creating a simple yet elegant and atmospheric ambiance.
Acrylic panel dimensions: Length 28 m × Height 1.7 m × Thickness 150 mm.

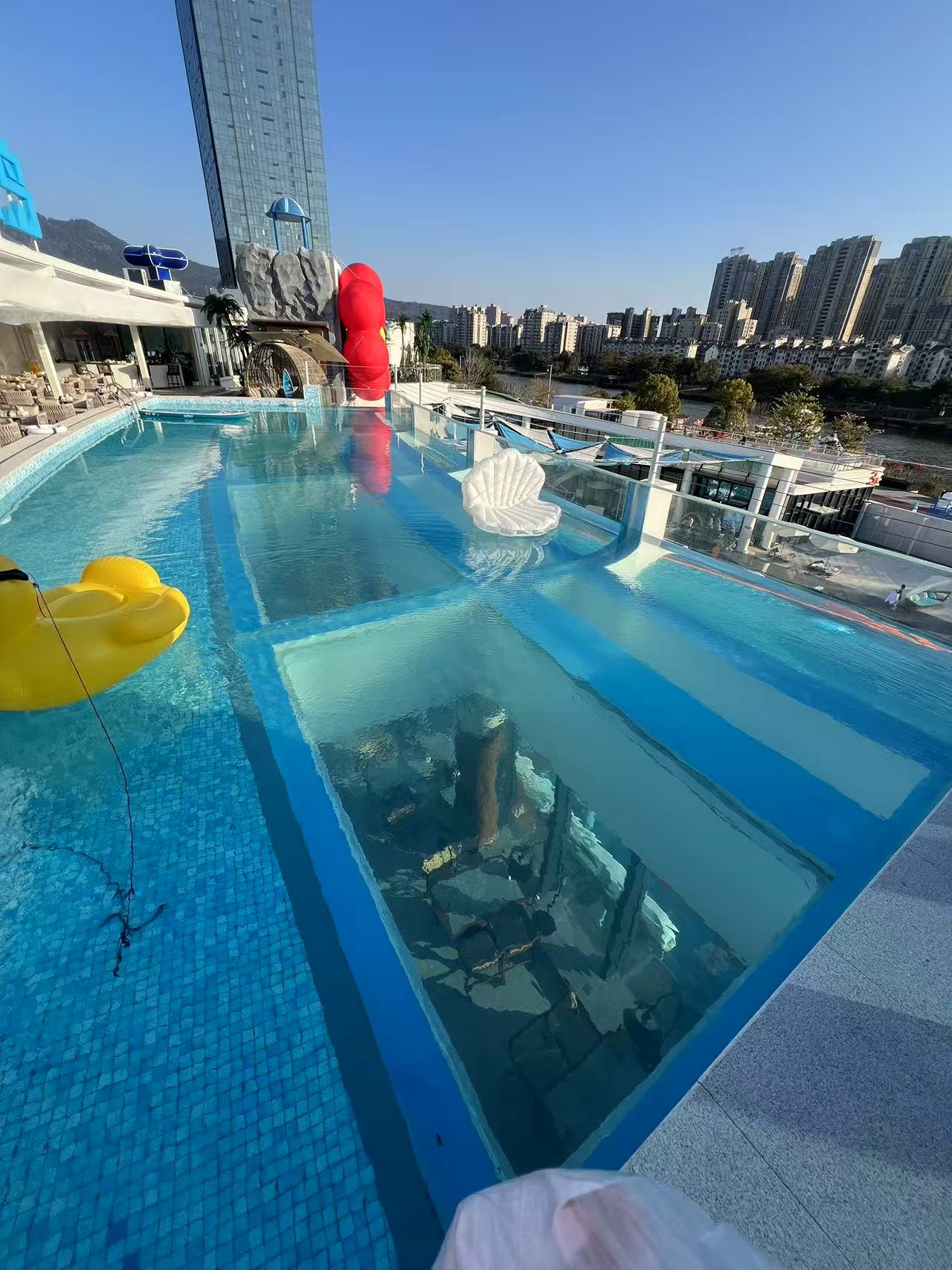

Fuzhou Kanuodao Swimming Pool
The swimming pool is located on the 3rd floor of the main building of Guangminggang Hot Spring Water Park, designed as an infinity constant-temperature swimming pool with a rated water load of 200 tons. The pool cantilevers 2.5 meters outward from the platform, and the base of the cantilevered section is constructed with transparent acrylic panels.
Length: 25 m Width: 8 m Cantilever extension: 2.5 m Water capacity: 200 tons
Engineering Calculation Process
Professional manufacturers like Leyu Acrylic follow these steps to determine the right thickness:
Collect detailed project parameters
Perform Finite Element Analysis (FEA)
Calculate maximum deflection and stress
Apply appropriate safety factors
Recommend the optimal thickness and support system
Cost vs Thickness Balance
Thicker panels cost more per square meter, but they often reduce overall project costs by simplifying support structures and installation.
Maintenance and Service Life
Regardless of thickness, maintenance is relatively simple — regular cleaning with mild soap and soft cloths is sufficient. With proper thickness selection and good care, high-quality acrylic swimming pool panels can last 20–30 years.
Conclusion
How thick should an acrylic swimming pool panel be? It must be determined scientifically based on your specific project conditions. Partnering with an experienced manufacturer is very important.
With nearly 30 years of professional experience and numerous challenging pool projects, Leyu Acrylic can provide full support from thickness calculation to complete solutions.
If you are planning an acrylic swimming pool project, feel free to contact Leyu Acrylic. Our team will provide professional advice and customized solutions tailored to your needs.
