How to Design Large Acrylic Panels for Aquariums - Leyu Acrylic

Designing large acrylic panels for aquariums is a complex but rewarding process that combines engineering precision, material science, and aesthetic vision. Whether for a grand oceanarium or a high-end commercial aquarium, properly designed large acrylic panels for aquariums deliver unmatched optical clarity, structural safety, and immersive visitor experiences.

In this detailed guide, we explore how to design large acrylic panels for aquariums step by step, based on real-world practices and proven techniques used in successful projects.

Why Large Acrylic Panels Are Ideal for Modern Aquariums

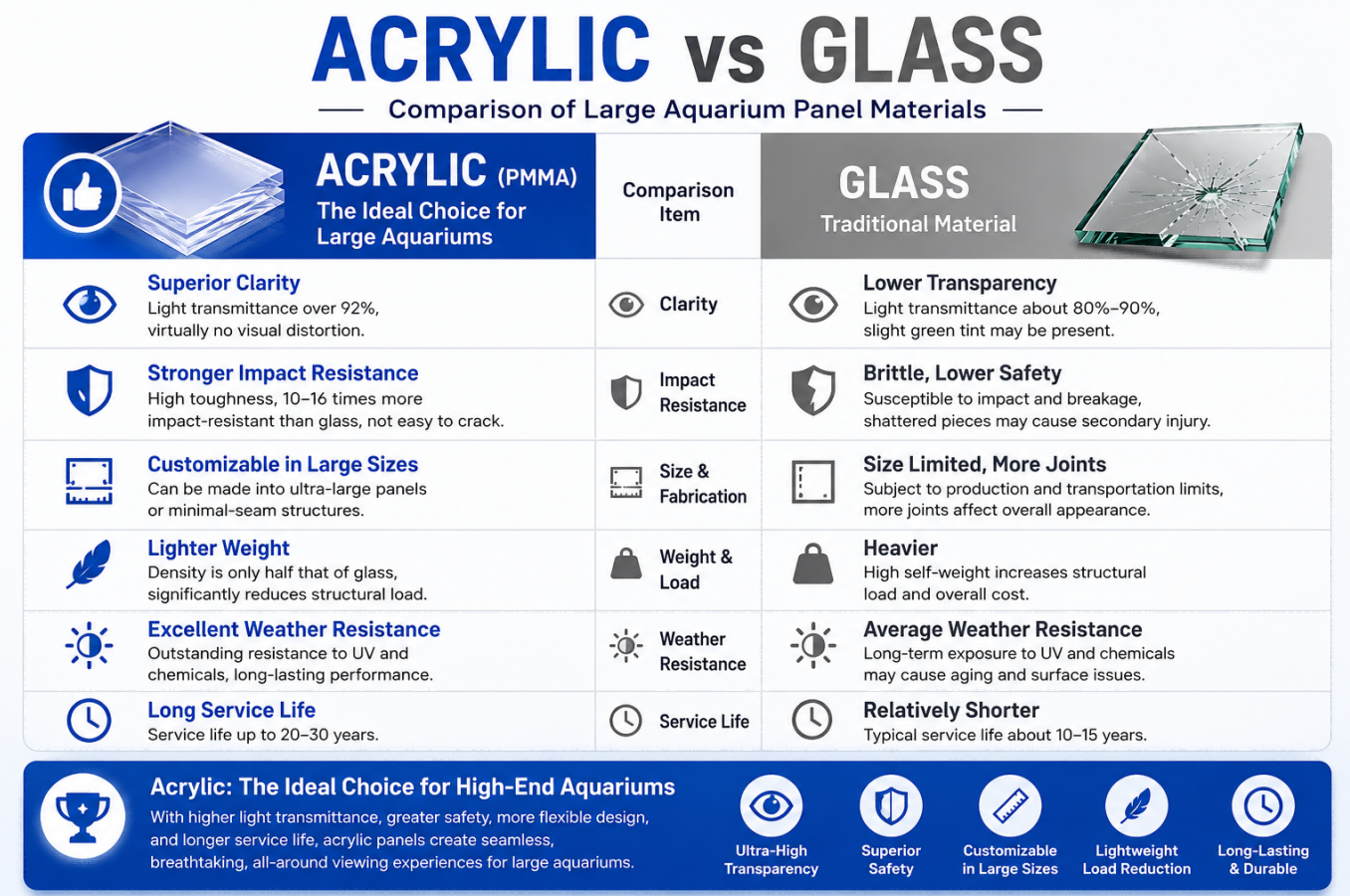

Large acrylic panels for aquariums have become the material of choice for major marine facilities worldwide. Compared to glass, acrylic offers superior light transmittance (over 92%), significantly higher impact resistance, and much greater design flexibility. These qualities allow architects and engineers to create seamless, panoramic viewing experiences that traditional materials cannot achieve.

Key advantages include:

• Crystal-clear views with minimal distortion

• Ability to produce massive seamless or minimally seamed panels

• Lighter weight, reducing structural demands

• Excellent resistance to pool chemicals and UV exposure




For projects requiring panels spanning several meters, large acrylic panels for aquariums provide the perfect balance of beauty and engineering performance.

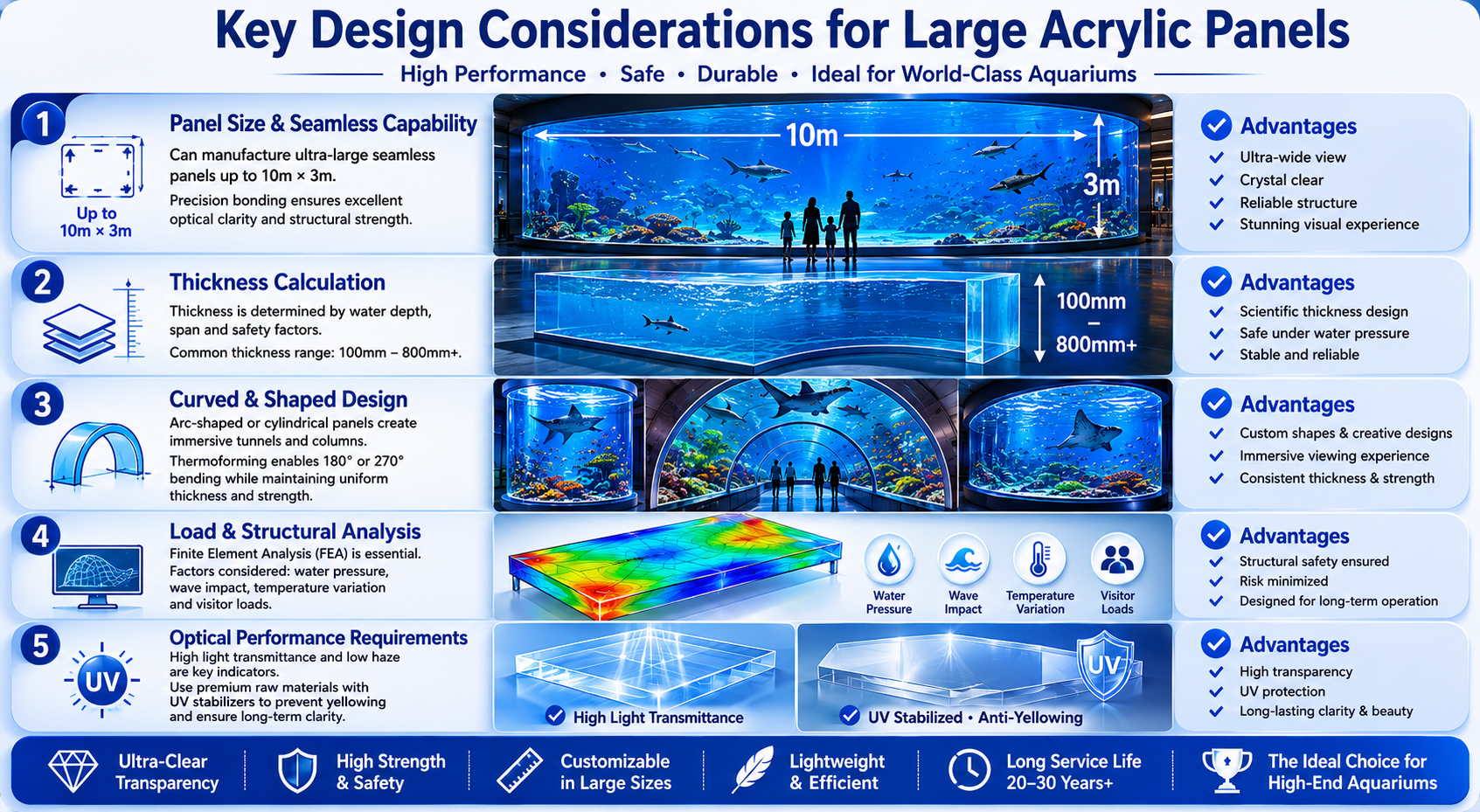

Key Design Considerations for Large Acrylic Panels

Successful design of large acrylic panels for aquariums starts with understanding several critical factors:

1. Panel Size and Seamless Capability

The maximum seamless size is an important starting point. High-quality manufacturers can produce seamless panels up to 10m × 3m. For larger surfaces, precision splicing techniques are used to maintain optical clarity and structural integrity.

2. Thickness Calculation

Thickness is determined by water depth, panel span, and safety factors. For deep exhibits or wide tunnels, thicknesses commonly range from 100mm to 800mm. Proper calculation ensures the panel can withstand hydrostatic pressure without excessive deflection.

3. Curvature and Shape Design

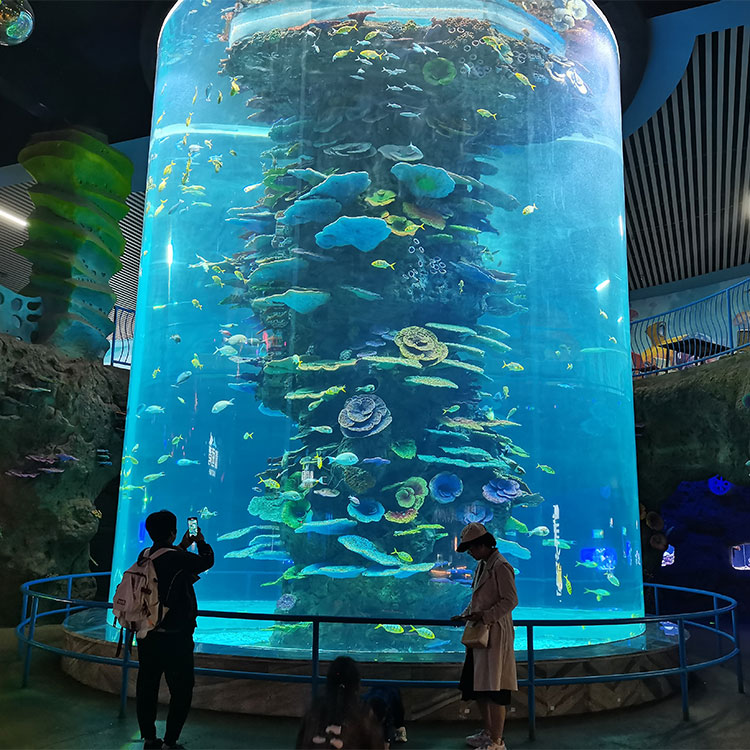

Many aquariums use curved large acrylic panels for aquariums to create immersive tunnels or cylindrical tanks. Thermoforming technology allows panels to be shaped into 180° or 270° curves while maintaining uniform thickness and strength.

4. Load and Structural Analysis

Finite Element Analysis (FEA) is essential. Engineers must account for water pressure, wave action, temperature fluctuations, and visitor loads. Safety factors are typically set at 3–4 times the expected load.

5. Optical Performance Requirements

High light transmittance and low haze are critical. Panels should be produced from premium materials with advanced UV stabilizers to prevent yellowing over decades.

Material Selection and Manufacturing Process

Choosing the right raw material is fundamental. Premium Lucite or equivalent cast acrylic is preferred for aquarium applications due to its consistent quality and optical properties.

The manufacturing process for large acrylic panels for aquariums includes:

• Precision casting of thick sheets

• Multi-stage annealing to relieve internal stress

• CNC machining for precise edges and holes

• Careful polishing to achieve mirror-like surfaces

• Quality inspection including optical testing and stress checking




These steps ensure the final panels meet strict aquarium standards for safety and longevity.

Engineering Best Practices

When designing large acrylic panels for aquariums, collaboration between material specialists, structural engineers, and aquarium experts is crucial. Important engineering considerations include:

• Proper support framing systems

• Flexible sealing methods that accommodate thermal expansion

• Integration of lighting and filtration systems

• Redundancy in critical structural areas




Real-world testing and load simulation help validate designs before fabrication.

Real Project Examples

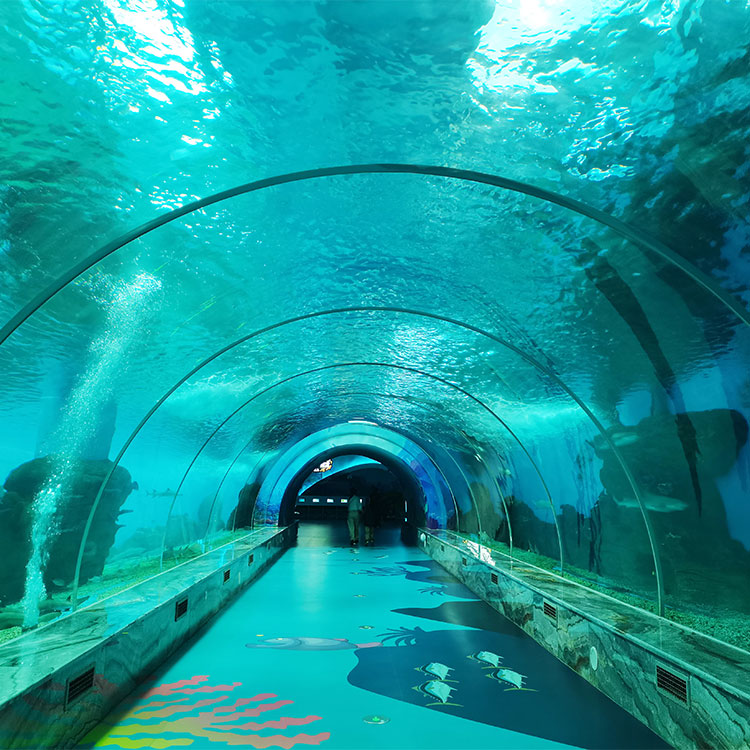

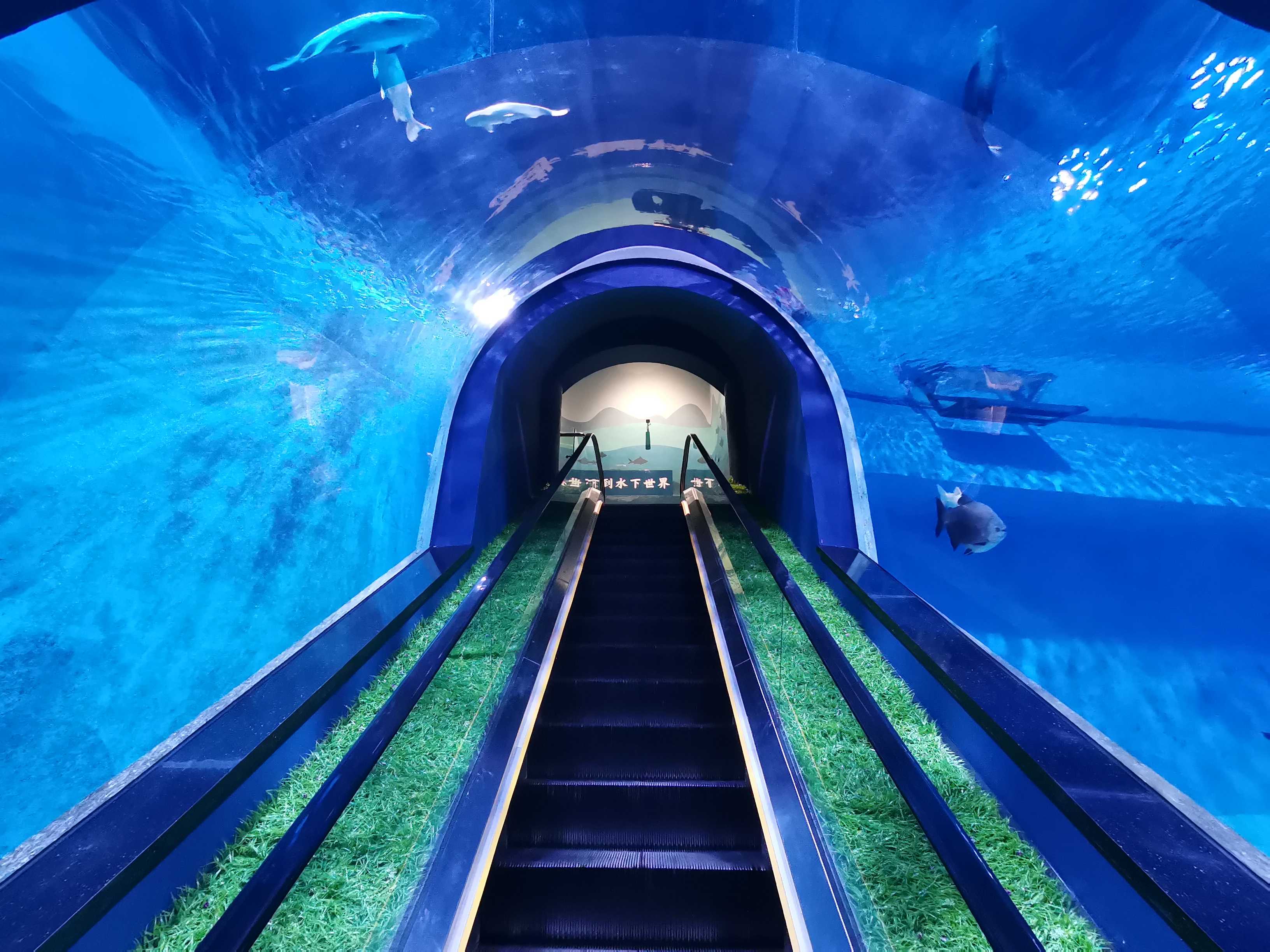

Leyu Acrylic has applied these design principles in numerous successful projects. For example, in Xuzhou Oulebao Polar Ocean World, a 300-meter underwater tunnel was constructed using carefully designed curved acrylic panels. The panels provided excellent clarity and structural performance, creating one of China’s longest indoor acrylic tunnels.

In Shanghai Haichang Ocean Park, large acrylic panels for aquariums formed a 155-meter main tunnel with 5-meter diameter sections. The design delivered wide viewing angles and impressive immersive effects while maintaining high safety standards.

These projects demonstrate how thoughtful design of large acrylic panels for aquariums can transform visitor experiences and withstand long-term operational demands.

Installation and Maintenance Considerations

Even the best-designed panels require proper installation. Key practices include:

• Precise alignment and leveling

• Use of compatible sealants with flexibility

• Gradual filling and monitoring during initial water testing




For ongoing maintenance, regular gentle cleaning with mild soap and soft cloths helps preserve clarity. Professional inspections are recommended annually for large installations.

Common Challenges and Solutions

Designing large acrylic panels for aquariums comes with challenges such as managing thermal expansion, ensuring perfect optical joints, and meeting local building codes. Experienced manufacturers address these through detailed planning, advanced bonding techniques, and comprehensive testing protocols.

Future Trends in Aquarium Panel Design

The industry continues to evolve toward larger spans, smarter integration with lighting and monitoring systems, and more sustainable manufacturing processes. Designers are also exploring hybrid solutions that combine acrylic with other materials for enhanced performance.

Conclusion

Designing large acrylic panels for aquariums requires careful attention to material properties, engineering calculations, manufacturing precision, and installation details. When executed properly, these panels create breathtaking aquatic displays that educate, entertain, and inspire visitors for decades.

Leyu Acrylic brings nearly 30 years of specialized experience to every project, offering full support from initial design consultation through to successful installation.

If you are planning a new aquarium or upgrading an existing facility, contact Leyu Acrylic to discuss how expertly designed large acrylic panels for aquariums can bring your vision to life.

FAQ

1. Q: How much does a large acrylic panel for an aquarium cost?

A: The price depends mainly on thickness, size, and design complexity. Generally, it ranges from several hundred to several thousand USD per square meter. Thicker and larger panels cost more. We recommend sending your specific requirements for an accurate quote.

2. Q: Which is more cost-effective in the long run — acrylic or glass?

A: Acrylic is usually more cost-effective over time. Although the initial investment is higher, it is lighter, easier to install, less likely to break, and requires less maintenance. It can maintain excellent performance for 20–30 years.

3. Q: How long does it take to custom-make large acrylic panels?

A: From design confirmation to finished production, it typically takes 4 to 8 weeks. Urgent projects can be expedited, but we suggest planning ahead to ensure the best quality.

4. Q: Are large acrylic panels suitable for home aquariums?

A: Yes, they are suitable for medium to large home or private aquariums. For smaller home tanks, we recommend using thinner acrylic panels that still provide excellent clarity while being more budget-friendly.

5. Q: Do Leyu Acrylic panels come with a warranty?

A: Yes. We provide a 5 to 10-year warranty on aquarium-grade acrylic panels, mainly covering material quality and optical performance. Specific terms will be clearly stated in the contract.

6. Q: Are these acrylic panels environmentally friendly and safe for fish?

A: Yes, they are very safe. We use food-grade raw materials that do not release harmful substances. They are marine-life friendly and meet international safety standards.

7. Q: Will large acrylic panels be easily damaged during transportation?

A: We use professional protective packaging including thick foam, reinforced wooden crates, and shock-absorbing measures. As long as our transportation and installation guidelines are followed, the risk of damage is very low.

8. Q: Can the panels be upgraded or partially replaced in the future?

A: Yes. We consider future maintenance during the design phase and can provide modular solutions that make future upgrades or partial replacements easier.

9. Q: How can I tell if an acrylic manufacturer is professional and reliable?

A: Look at their past large-scale project references, raw material brands (such as Lucite), engineering design capabilities, and installation experience. Leyu Acrylic has nearly 30 years of experience and over 100 successful projects.

10. Q: I only have a preliminary idea — is it too early to contact Leyu Acrylic?

A: Not at all! We welcome customers to contact us at the early concept stage. We offer free initial consultation and suggestions to help turn your ideas into a practical plan.
